- Street lighting

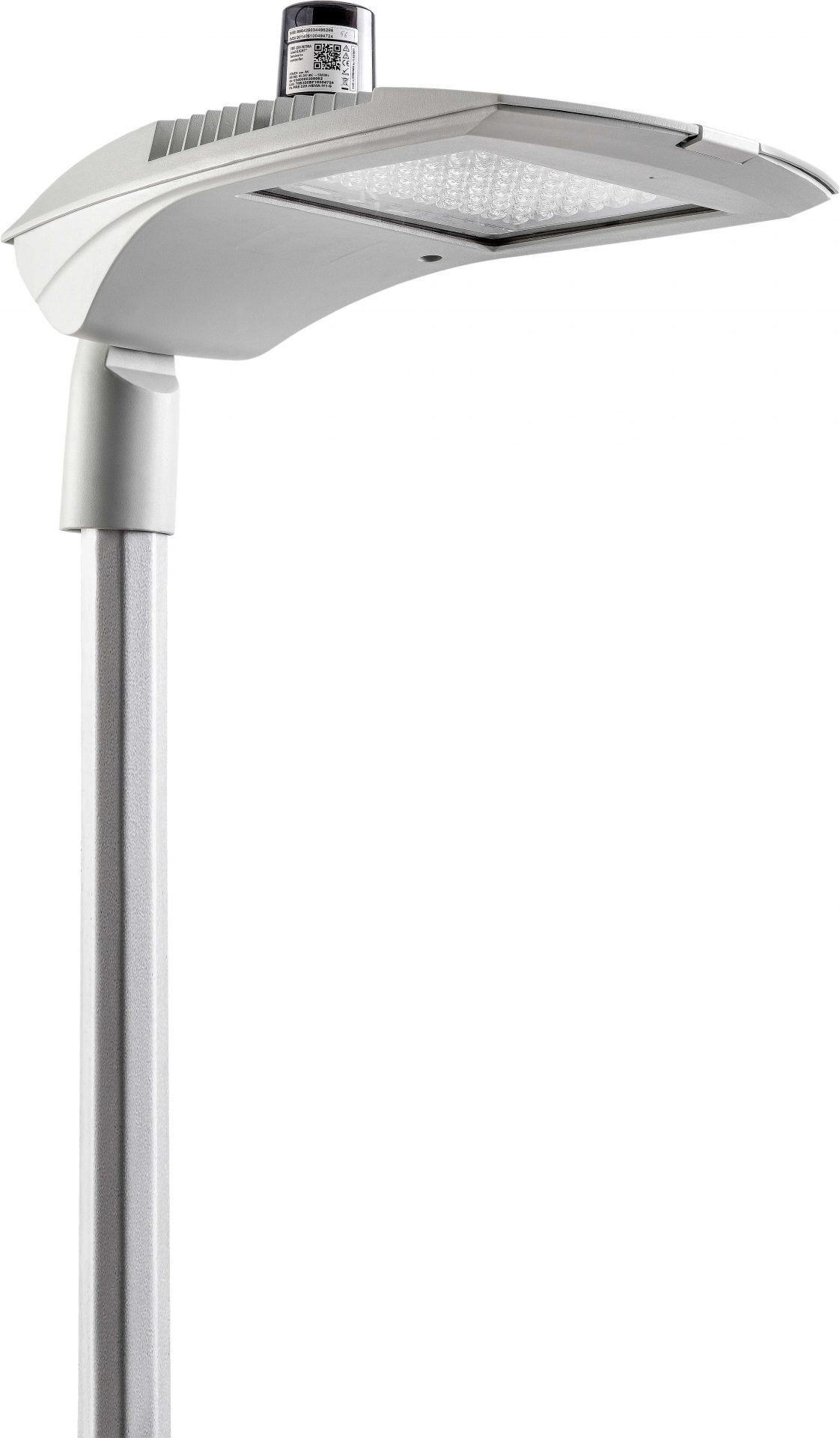

VERITAS LUNA
Modern design that meets the architectural and urban requirements.
Functionality that meets all lighting requirements.
Adaptable to any specific requirements.
Characteristic of the production approach of Veritas LUNA luminaire is meeting the customer needs to the maximum extent.
Leading production principle of Veritas LUNA luminaire is focusing to the maximum quality and reliability, to the best components used, as well as the production process itself as well as precision in workmanship and assembly.
Special attention is paid to the design of the luminaire which, beside aesthetic, contains also the technical qualities and in particular regarding cooling which is the paramount problem of LED luminaires, with curved surface to achieve the effect of self-cleaning.
Easy maintenece. Tool-less entry. Modular design allows simple and fast replacement of LED modules
In the event of a failure of one of the LED light sources, the lamp continues to light without an unwanted increase in the current of any LED module (optional design).
Gallery
More
Great longevity of the lamp – L80B10 over 100.000 h, L90B10 over 100.000 h, L95B5 over 100.000 h.
High environmental standards are respected during the production of the luminaire, and the luminaire design itself is such that there is no light emission in the upper hemisphere, thus minimizing the light pollution.
Various power up to 200W
Trademark |
Input voltage |
El. class |
Frequency |
Power |
Power factor |
Luminous flux |
LED Module efficacy |
CRI |
CCT |
Mass |
Humidity range |
Temperature range |
Veritas LUNA-S | 230V AC ±10% | I or II | 50 Hz | up to 85 W | >0,96 | up to 13000 lm | up to 200 lm/W | ≥70 ≥80 ≥90 | 3000K 4000-4500K 4500-6000K | 2,8 kg | 0% – 100% | -40°C – +55°C |
Veritas LUNA-M | 230V AC ±10% | I or II | 50 Hz | up to 110 W | >0,96 | up to 18000 lm | up to 200 lm/W | ≥70 ≥80 ≥90 | 3000K 4000-4500K 4500-6000K | 5,5 kg | 0% – 100% | -40°C – +55°C |
Veritas LUNA-L | 230V AC ±10% | I or II | 50 Hz | up to 240 W | >0,96 | up to 38000 lm | up to 200 lm/W | ≥70 ≥80 ≥90 | 3000K 4000-4500K 4500-6000K | 9,0 kg | 0% – 100% | -40°C – +55°C |
Basic types of optics according to the IES clasification are type I, II., III., IV., V.
Other types of optics are available according to the customer requirements, type of road and the project. IES file is available on request.
OPTICS
IES TYPE I
OPTICS
IES TIP II
OPTICS
IES TIP III
OPTICS
IES TIP IV
OPTICS
IES TIP V
